Operating voltage

Continuous power supply from DC 8V to 36V .

Overall power consumption

Standby: 24V: MAX 1W .

Operating : 24V: MAX 3W .

Maximum cumulative running time

99999.9 hours (minimum storage time 1 minute) .

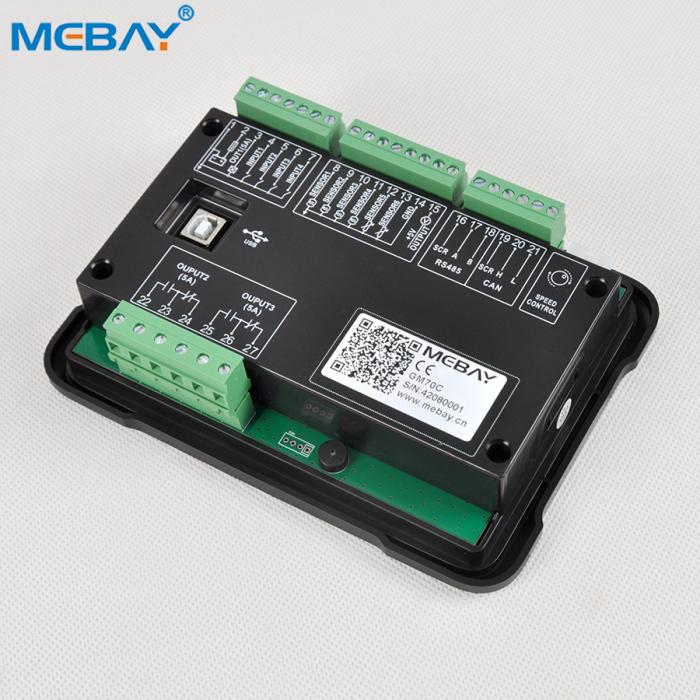

Configurable output 1

5Amp active output .

Configurable output 2

5Amp passive contact - one normally open - one normally closed output .

Configurable output 3

5Amp passive contact - one normally open - one normally closed output .

digital input

The active state can be configured to be either floating active or ground active.

Working conditions

-25 to 65℃ .

Storage conditions

-40 to 85℃ .

Protection level

IP65: When a waterproof ring is installed between the instrument panel and the control panel.

Insulation class

When an AC 2.2kV voltage is applied between the high-voltage and low-voltage terminals, the leakage current should not exceed 3mA within 1 minute.

External dimensions

175mm*128mm*39mm.

Opening size

152mm*112mm.

weight

0.5Kg.
